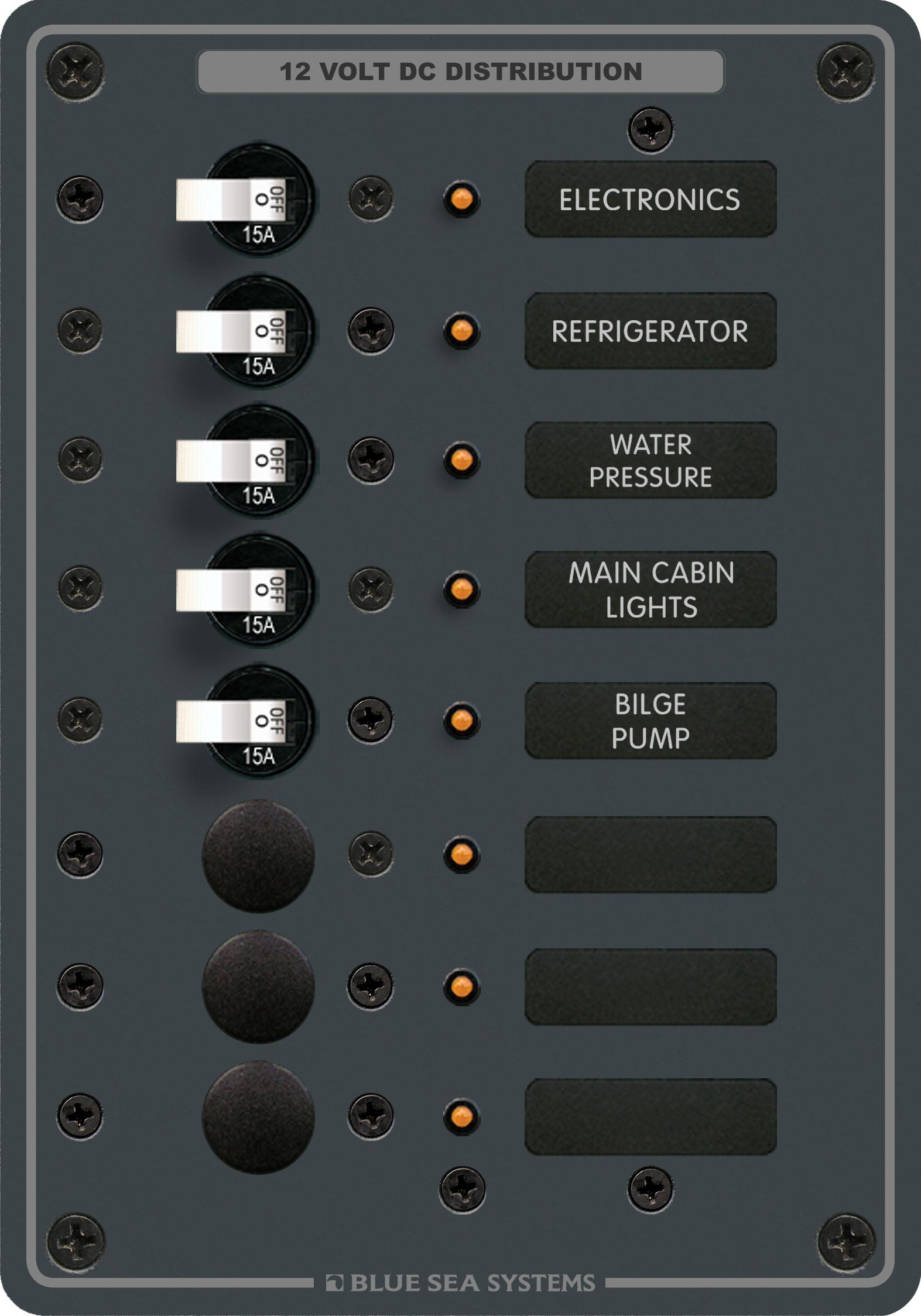

Blue Sea DC Circuit Breaker 8 Positions
$312.00 USD – Sold Out
- All positive, negative and grounding buses installed, fully pre-wired
- Panels with meters include toggle switch for mounting up to 3 battery banks
- All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)
- All circuit label positions are backlit on standard panels - No kit required
- "ON" indicating LEDs installed in all circuit position
| Specifications | |
|---|---|
| Positions | 8 |
| Nominal Voltage | 12V DC 24V DC |
Maximum Amperage | 100A |
| Height | 7.50in (190.5 mm) |
| Width | 5.25in (133.35 mm) |
| Weight | 1.95lb (0.88 kg) |
| Weight | 1.95lb (0.88 kg) |
| Included | ||
|---|---|---|
| Qty | PN | Product |
| 5 | 7210 | A-Series White Toggle Circuit Breaker - Single Pole 15A |
| 1 | 8030 | Basic DC Panel Label Set - 30 Labels [LABEL] |
